ISevo V2

ISevo V2
Filling & sealing machine for bovine semen straws

Ref. 030068-030056-030061-030071-030059-030057-030054-030060

The ISevo V2 is a high-performance straw filling machine, designed for optimal efficiency, safety, ergonomics, and traceability in semen processing labs

Ref. 030068-030056-030061-030071-030059-030057-030054-030060

Packaging and sales unit

By unit


Overview

Isevo V2 is newest filling and sealing machine designed for multi species purpose. The Isevo machine is an automated solution designed to fill bovine semen straws with precision and efficiency. It offers several key advantages: time saving, peace of mind through reliable operations, advanced traceability, detection of properly filled straws, as well as efficient filling and sealing. Its smart ergonomics make it user-friendly, streamlining the entire process for better security and ease of use.

Main features

  • 1 to 4 straws filling
  • Speed/output: 12 500 straws/hour
  • Dedicated Mini OR Medium straws
  • Compatible with mini disposable filling nozzle
  • Isevo/Isevo Alpha Flex run with conventional, TBS Straws or Alpha straws
  • Semen cone of 200 ml
  • Filling of viscous media
  • Features manageable thanks to the supervision
  • Working temperature: +4°C to +40°C
  • Fit in vertical and horizontal cold cabinet
  • Humidity environment: up to 80%
  • Conforms to current European directives
  • Connectable to esmile
  • Exist on integrated version
  • End-of liquid and automatic switch 1x1
  • Sequential priming filling
  • Alpha detection : Plug moisture detection
  • Barcode 128 and datamatrix printing


Efficient and optimized filling, sealing and/or printing

Engineered for precision, speed and safety, ISevo V2 range ensures seamless filling, sealing and/or printing of bovine semen straws.Its optimized range minimizes waste and maximizes output, delivering consistent results with every cycle. ISevo V2 range is a monolithic multi-purpose machine which handle the filling of different species like Bovine, Equine, Ovine and Aquaculture. Isevo V2 range can be available with integrated system.

Built to withstand time, offering reliability and easy day-to-day maintenance

Isevo V2 range, designed for filling, sealing and or printing semen straws, ensures long-term reliability with its robust construction. Its user-friendly design allows for quick, hassle-free daily maintenance, keeping your operations smooth and efficient.

Advanced traceability for semen doses

Ensuring full traceability is essential in modern semen collection center, and this machine is designed to meet that need with precision and efficiency. Integrated with the IIS supervision software, it provides real-time monitoring and comprehensive batch tracking.





Videos


Technical Specifications

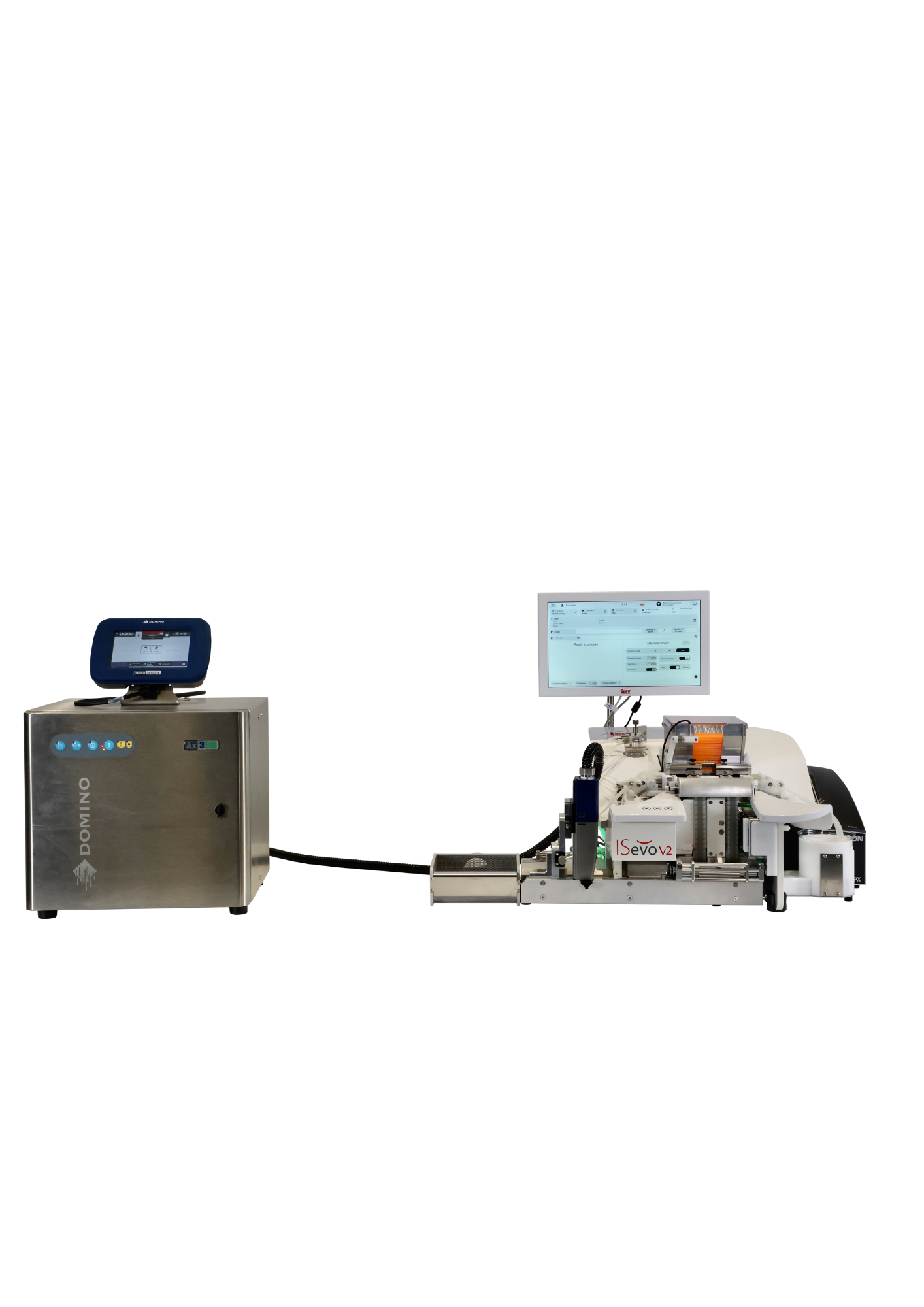

ISEVO V2 - Integrated with Ink Jet Weight: 77 kg
Size (HxLxl): 1200 x 800 x 1200 mm
Material/Composition: Stainless steel, aluminium, plastic
Pallet weight: 122 kg
Pallet size (HxLxl): 1200 x 800 x 725 mm
Material/Composition: Traited wood + Cardboard
Voltage: 220 V/50-6 0 Hz
Cadence/Capacity : 13 000 Str aws/h
ISEVO V2 - Non integrated Weight: 40 kg
Size (HxLxl): 350 x 520 x 570 mm
Material/Composition: Stainless steel, aluminium, plastic
Pallet weight: 85 kg
Pallet size (HxLxl): 1200 x 800 x 725 mm
Material/Composition: Traited wood + Cardboard
Voltage: 220 V/50-6 0 Hz
Cadence/Capacity: 13 000 Straws/h

Accessories

Alpha straw

The Alpha straw by IMV Technologies is an innovative bovine semen straw technology, gua More information

TBS straw

The TBS, or Top Bull Straw, was designed for bulls of high genetic merit.  Proprietary, More information

Classic IMV bovine straws

Original straw created by our founder Robert Cassou in 1963, never equaled in terms of More information

Mini disposable filling nozzle for ISevo, IS4 and MRS4

1-way disposable filling nozzle for filling mini straws More information

Medium long filling nozzle compatible with ISevo, MRS1, MRS4 and IS4

Long filling nozzle 0,50 ml More information

Mini short suction nozzle, compatible with ISevo, MRS1 dual, MRS4, and IS4

Compatible avec les machines MRS1 DUAI, MRS4 et IS4.Semen packaging More information

Medium short suction nozzle for ISevo, MRS1 dual, MRS4 and IS4

Short filling nozzle 0,50 ml More information

Flexible tube for semen filling

Flexible tube used to transfer semen from the semen container to the straws. More information

Semen suction cone V2

Used with all IMV machines. Contains up to 110 mL (+/- 500 straws) - Optimum for auto s More information

Related products

TBS straw

The TBS, or Top Bull Straw, was designed for bulls of high genetic merit.  Proprietary, More information

Classic IMV bovine straws

Original straw created by our founder Robert Cassou in 1963, never equaled in terms of More information

Care & Maintenance


  • Recommended use: Use the machine indoor at temperature betw een +5°C and +40°C, humidity 80%. Read the manual carefully before use.
  • Standards/Regulations: Directive 2006/42/EC
  • Warranty: 1 year
  • Storage: Store in a clean and dry place
