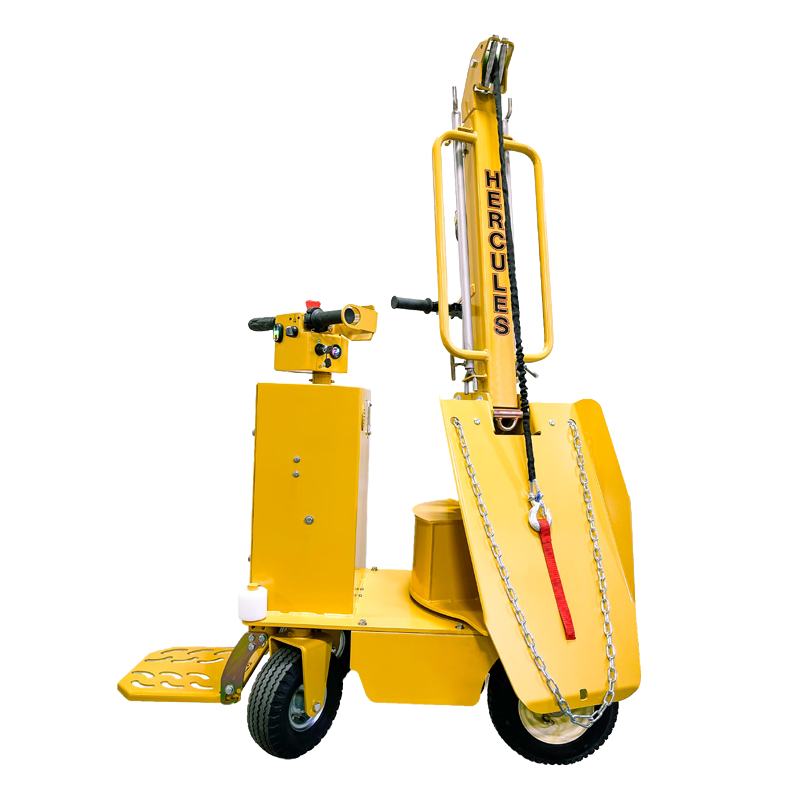

The Hercules' Arm is a self-propelled carcass removal system engineered to operate efficiently in the most confined and demanding barn environments. Designed for single operator use, it enables the safe and effortless extraction of heavy sow carcasses from restricted spaces, eliminating the risk of operator injury and significantly reducing handling time. Its exceptional maneuverability is achieved through a tiltable telescopic boom and 180° pivoting mast, working in unison to navigate tight corners and obstacles with precision.
Pivotable mast allows you to remove sows from individual stalls with absolutely no effort.
Hercules' Arm turns a 4-man job into a 1-man task, freeing up your time and energy to focus on what matters most.
Thoughtfully engineered and built with premium materials, it’s designed to withstand the toughest farm conditions.
| Width: | 21” (53.3 cm) |
| Length (without footboard): | 42” (106.7 cm) |
| Height (minimum): | 71” (180.3 cm) |
| Height (maximum): | 98” (249 cm) |
| Weight: | 730 lbs (331 kg) |
| Max lifting Capacity: | 1 015 lbs (460 kg) |
| Forward and reverse speed: | 176 ft/min (53.6 m/min) |
| Safety arms: | 2 included |
| Speed control: | Variable speed with twist grip throttle |
| Drive motor: | 24V, 550W (3/4 hp) |
| Motor brake: | Built-in |
| Battery: | 2 rechargeable gel batteries (12 V) |
| Battery charger: | Built-in (24 V) |
| Winch: | (24 V) 4 500 lb (2 000 kg) |
| Winch cable: | Synthetic cable or galvanized steel 1/4” (stainless steel in option) |
| Flat-proof tires: | Gel-filled |
| Tiltable telescopic boom: | 6 positions |
