Automatic dosing and sealing of porcine semen doses with reliable performance, and an intuitive interface for mid-size production units.
1

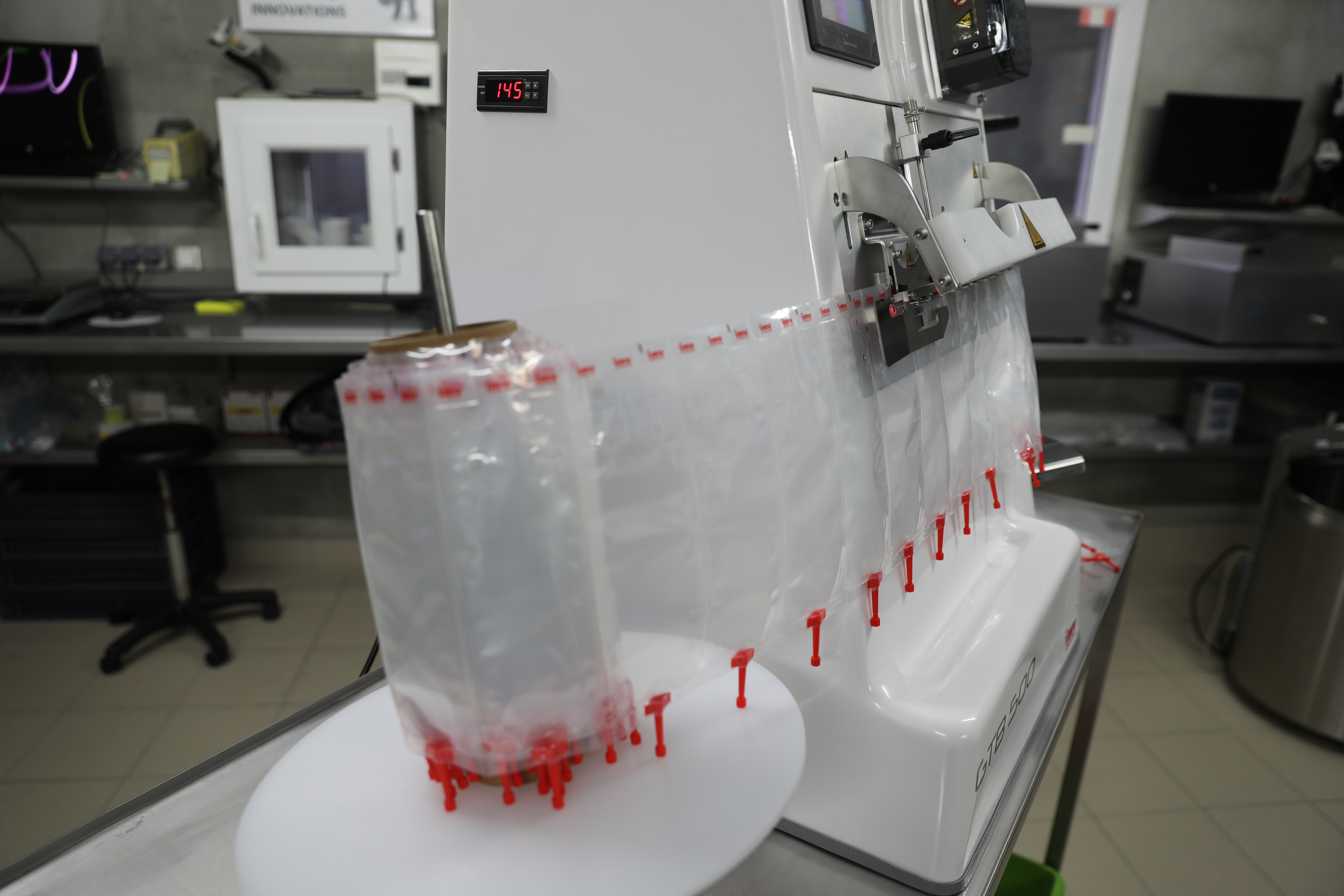

The GTB 500 is an automatic filling and sealing machine designed to reduce reliance on operator skills and make processes more resilient to staff changes. It brings simple, accessible automation to mid-capacity production units and is backed by IMV Technologies’ long-standing expertise.
Precise filling, assured quality
Controlled dosing and reliable sealing ensure consistent volumes and stable dose quality. Automation limits variability and secures day-to-day reproducibility.
Easy start, effortless care, always supported
Preset parameters and an intuitive interface allow quick adoption by any operator. Routine maintenance is simple, and worldwide support ensures continuous reliability.
Certified safety, built to last
CE and EMC certifications guarantee compliance. A robust design and durable components ensure long-term performance in demanding production environments.
| PRODUCT | |
| Quantity: | 1 |
| Weight: | 55 kg |
| Size (HxLxl): | 1570 x 770 x 600 mm |
| Material / Composition: | Plastic composite, Aluminium, Stainless steel |
| Voltage: | 110 to 220 V/ 50-60 Hz |
| Power: | 250 W |
| Cadency / capacity: | 500 bags/hour |
| PALLET | |
| Quantity: | 1 |
| Weight: | 86 kg |
| Size (HxLxl): | 950 x 1140 x 760 mm |
| Material / Composition: | Treated wood + cardboard |
030389 - Needle
030388 - Silicone tubing
030390 - Sinker weight
028247 - 3 liter dilbag
028246 - 8.3 Liter dilbag
005661 - 3 liter pitcher
005650 - 5 liter pitcher
An automatic filling and sealing machine for porcine semen bags, designed for mid-capacity production units (10-50 boars).
It works with crystal bag and fills up to 90 mL per bag. At maximum volume, it is recommended to reduce the machine speed to limit foam formation.
On farm or Medium-scale studs (10-50 boars) that need automation
Between 500 and 650 bags/hour, depending on volume and operating conditions.
Up to 90 mL. At this maximum volume, it is recommended to reduce the machine’s speed to avoid foam formation.
Preset parameters, automated cycles, and an intuitive interface ensure consistent handling by all operators.
Yes, it is CE-certified and EMC-compliant.
CE certification guarantees the machine’s electrical safety, mechanical integrity, and user protection. (IEC 61010-1:2010 + A1:2016)
EMC certified (EN IEC 61326-1:2021) – Reliable operation in any lab environment, free from electromagnetic interference
IMV Technologies provides global technical support backed by 60 years of expertise.
Standards/Regulations: Complies with Directive CE: 2006/42/CE
Recommended use: Read the manual carefully before using the equipment
Storage: Use the equipment indoors at a temperature of between +4 and +25°C and humidity of less than 80%.
Warrant: 1 year
Service support: Online and onsite support, delivered by a service team dedicated to your region.
Contact your sales representative for further information.
