Collectis is a unique automatic system used to collect boar semen.
Over 12 000 boars are collected weekly in more than 65 AI centers and 20 countries worldwide, producing over 18 million doses per year.
1
Collectis comes with 2 vagina holders without a dummy
Greater productivity: Twice the efficiency of manual collection.
Better quality of semen thanks to the use of an isothermal vagina for collections under the conditions of optimal cleanliness.
Safer working conditions: no need to crouch or kneel, lower risk of injury.
Easy management: less staff turnover in your team thanks to the use of the machine.
Collectis adapts to all types of existing facilities.
Customized study of setting up the Collectis by our technician.
Collectis includes:
1 control unit with management software and system
6 artificial vaginas
The specifications are valid for 100 boars (= 1 Collectis)
Collectis is an automated system to collect boar semen.

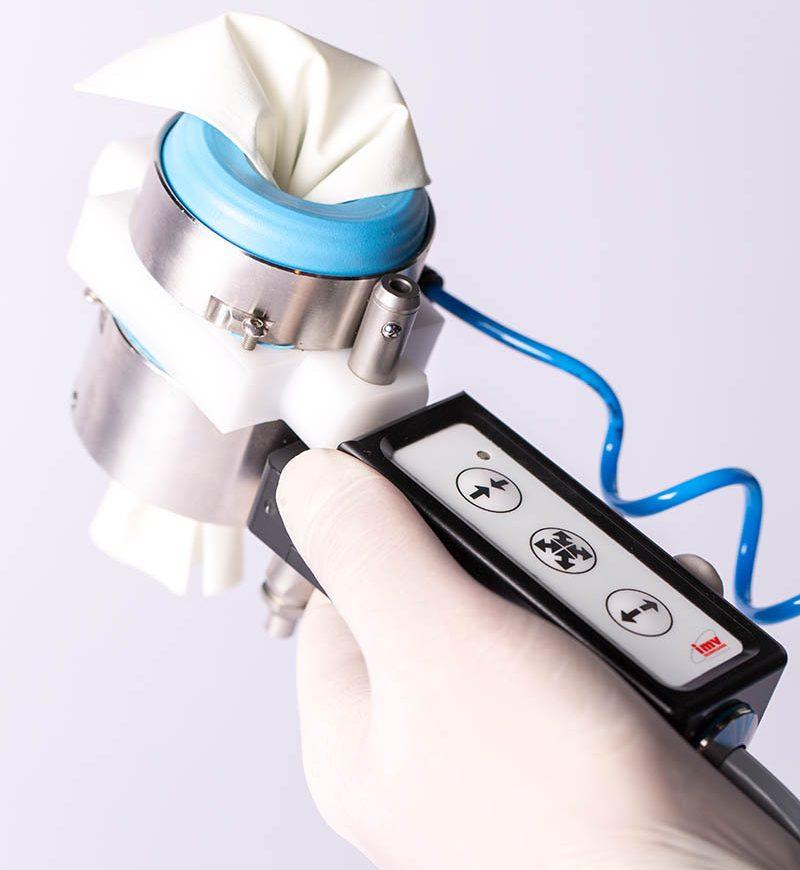

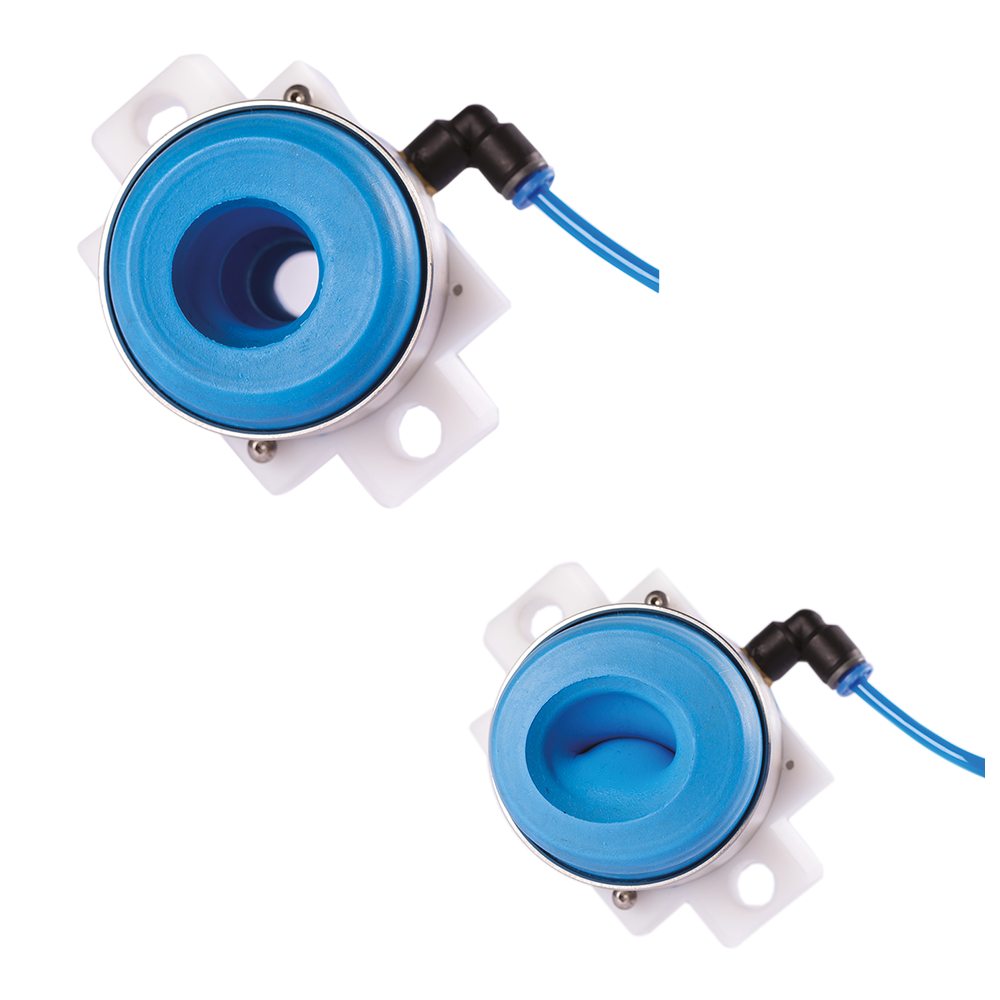

An artificial vaginal, fitted with a flexible membrane is hooked to the boar's penis.
A pneumatic system controlled by a PLC sends varying pressures during collection to the membrane
in order to imitate the uterine contractions of the sow.
This stimulates the boar's penis better
One regulation unit (PLC) , 2 control handles, 2 vagina kit supports, 6 artificial vaginas and a start-up consumables --kit (1000 liners, 2 stainless steel needle, silicone oil to assemble the vagina)
Training for Collectis is really easy.
Technicians need one to 2 weeks maximum to get used to it and enjoy its benefits.

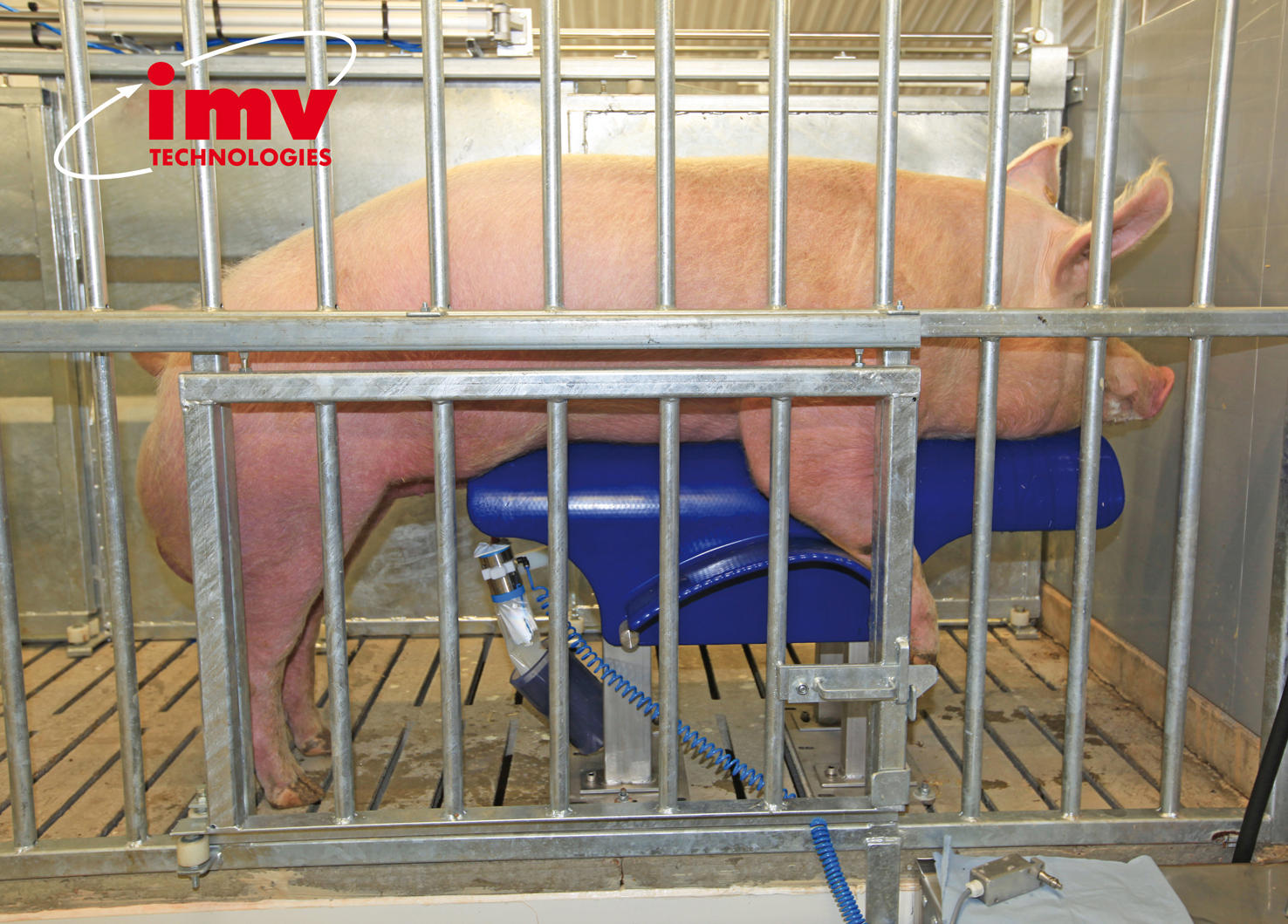

The Collectis should preferably be installed in a collection pit but a standard collection room is fine as well
Collectis is an automated way to collect boar semen.
Therefore there is no contact between the technician and the animal during the collection.
Moreover, since there is no contact between the penis and the boar's skin impurities or ambient dust are not going into the semen.
With Collectis, semen contains up to 10 times less bacterial contaminations than manual methods. Moreoever,
the concentration (million of spz per ml) will be higher with the Collectis than manually.
